Technical parameter Didactic rig for electronic car steering assembled on an open frame for easy identification ofcomponents. Specifications * Jacks fitted beneath the road wheels to load the suspension* Fitted with manufacturer’s diagnostic socket* Ammeter fitted to observe current draw* Pin-Out box enabling ‘real-time’ values to be taken without compromising The wiring harness * Supply […]

Technical parameter 1. Dimensions: 1340*650*1800mm(LxWxH)2. Power supply: AC220, 50Hz Product description This training board adopts the original car electric window system, which can display the composition structure of the car electric window system and demonstrate its working process. Product composition Power window switch 1SET Ignition switch 1PCS Power window motor 1SET Fault setting module(Manual switch

Engine model: Toyota Vios engine with transmissionThe trainer uses dissectioned gasoline engine, with manual transmission. Different parts are marked with different colors forstudents’ better understanding of structure and working principles of engine and transmission.Connected to 220V power supply, the students can easily understand the power transmission system’s structure and working processes4 movable casters for easy

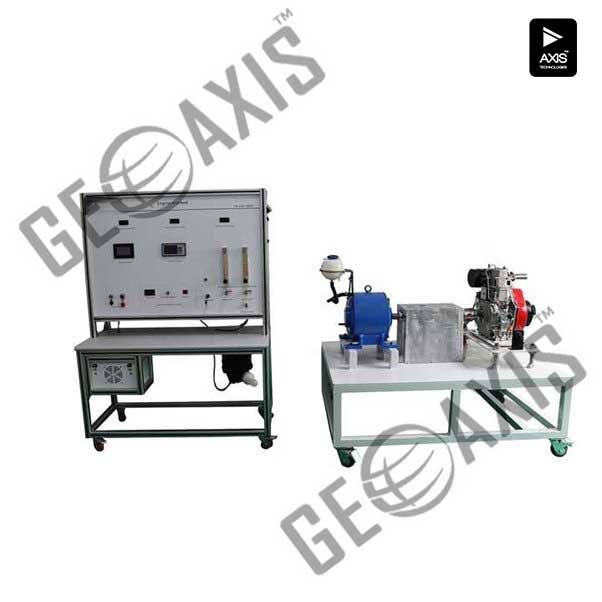

Technical parameter Dimension: test stand: 1270x850x1670mm approx.brake unit: 1270x1050x1120mm approx. Eddy current dynamometer Rated Generation Power: 10kW; Rated braking torque:50 Nm;Rated maximum speed: 13000 RPM; Measuring accuracy, Torque: +0.2~0.3% Fs; Speed: +1rpm; Coolant: Water Cooled; Coolant type: TapWaterEddy current dynamometer controllerController type: Active mode control; Mode of controls: Constant speed, constant torque & constant power;

Equipped with A functional ABS braking systemInstalled pressure gauges it is possible to monitor the pressure in the brake circuitHydraulic brake system12V battery220/12V power supply unitElectric wiring diagram with built-in banana plug jumpers for measurements and simualtionClearly visible fully functional braking system and its componentsCross diagonal hydraulic braking system with front and rear discs with

Technical parameter 1. Dimension: 1340*650*1800mm(LxWxH)2. Power supply: AC220V, 50Hz Product description This training board adopts the original vehicle fuel injection and ignition system, fully demonstrating the composition and structure of the vehicle fuel injection system and ignition system, and can demonstrate its working process. Product composition Ignition system 1SET Ignition switch 1PCS Fuel injection system

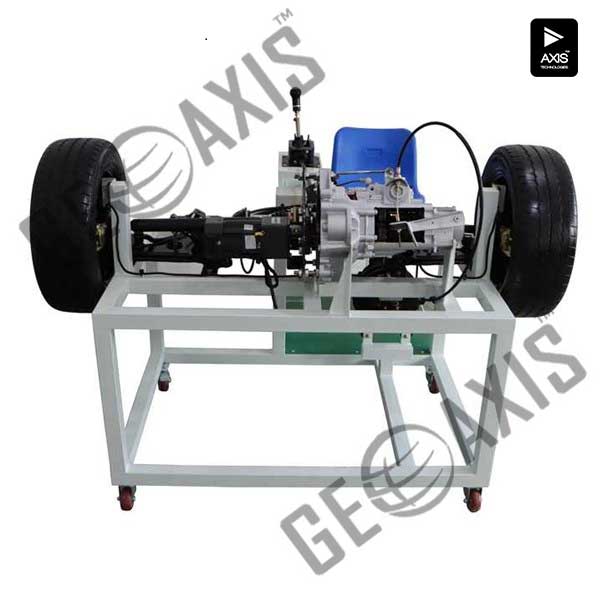

Technical parameter 1. Dimensions: 1750x1600x1150mm2. Power supply: AC220v/50Hz,3. Motor power: 120W.4. Transmission mode: Manual front drive Product description The trainer uses cutaway structure to display the structure and principle of Jetta front wheel drive transmission system and uses the motor to simulates the engine to drive the front wheel drive transmission system and the wheels

Technical parameter 1. Dimensions: about 1260x650x1890mm2. Power supply: AC220V, 50Hz Product description The training board adopts original Volkswagen Jetta auto lighting system. It can fully display the structure and components of the lighting system and can demonstrate its working process. Product composition Headlights 1PCS Front corner lamp 1PCS Front/rear fog lights 1PCS Side turning lamp

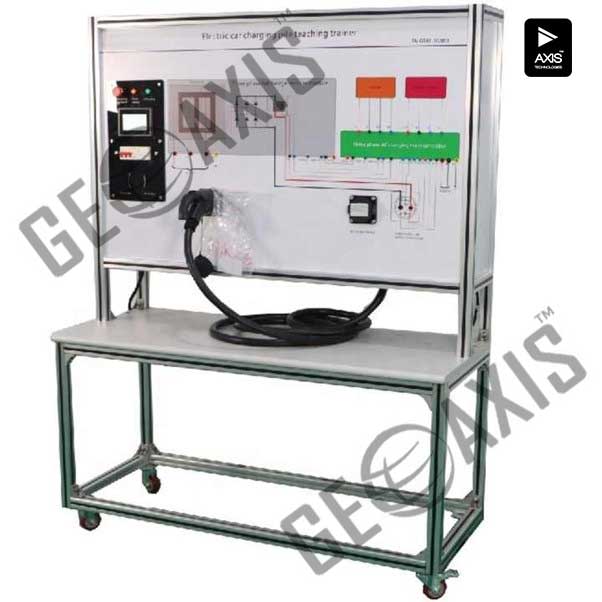

Technical parameter Dimensions: 1340mm × 550mm × 1800mm (l × w× h);Power supply: Single phase, AC220V/50Hz;Working temperature: -40 ° C ~ +50 ° C.Weight: About 80kgProduct descriptionThis Electric Car Charging Pile Board Teaching Trainer Automotive Educational Equipment Automotive Equipment consists of a real and operable plug-in electric car charging system. It can demonstrate the three-phase

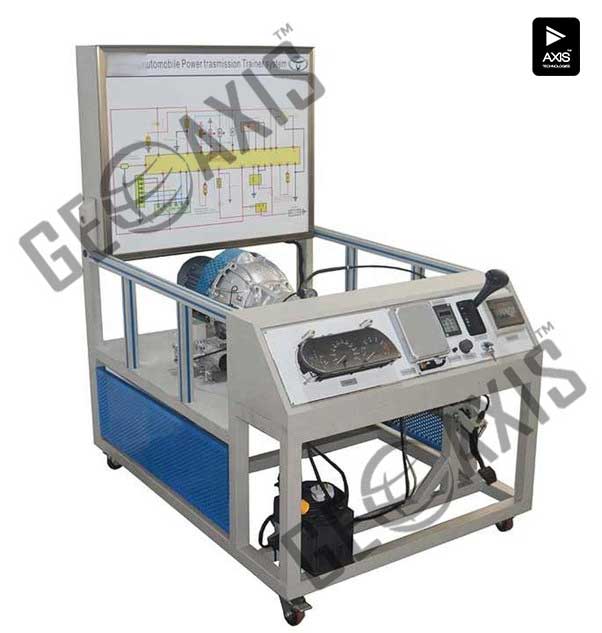

Technical parameter 1. Dimensions: 1000x1400x1800mm2. Power supply: AC 380V/ 50Hz, 3. Lubricant: ATF Product description The trainer displays the structure and working principles of automotive automatic transmission. It can demonstrate the shifting process of automatic transmission, the operation and use of automatic transmission, and can carry out the training of automatic transmission maintenance and measurement.
