Technical parameter
1. Dimensions: 1000x1400x1800mm
2. Power supply: AC 380V/ 50Hz,
3. Lubricant: ATF
Product description

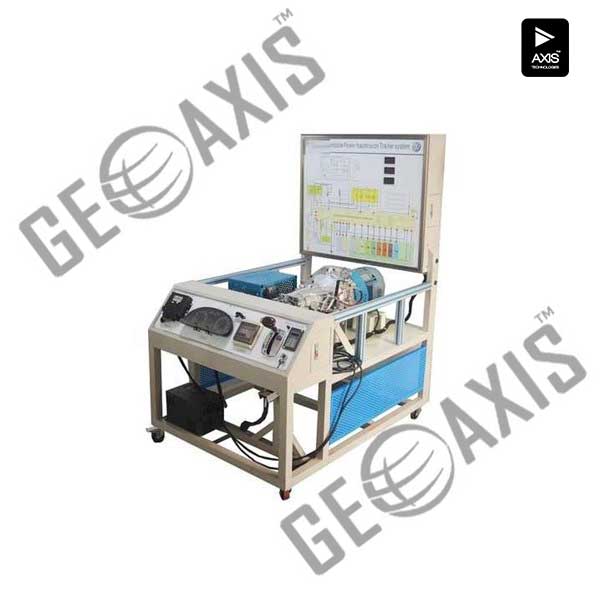

The trainer displays the structure and working principles of automotive automatic transmission. It can demonstrate the shifting process of automatic transmission, the operation and use of automatic transmission, and can carry out the training of automatic transmission maintenance and measurement.
| Product composition | ||
| No. | Name | QTY |
| 1 | Mobile stand with test panel | 1 set |
| 2 | Ignition switch | 1 pcs |
| 3 | Dashboard | 1 set |
| 4 | Automatic transmission assembly | 1 set |
| 5 | Automatic transmission ECU | 1 set |
| 6 | Diagnostic seat | 1 pcs |
| 7 | Pressure gauge | 1 pcs |
| 8 | Gear shift lever | 1 pcs |
| 9 | Frequency converter | 1 pcs |
| 10 | Brake mechanism | 1 set |
| 11 | Drive motor | 1 pcs |
| 12 | Fault set module | 1 set |
Main features
1. The drive motor is used as the engine to drive the automatic transmission and can make the transmission shift the gear automatically by adjusting the speed through the frequency converter,
2. The stalls distribution can be observed through the gear position indicator.
3. The oil pressure variation at each gear can be observed by the pressure gauge.
4. The circuit principle diagram of the automatic transmission is printed on the bench panel.
5. Fault can be set to simulate the failure of the automatic transmission.
Training courses
1. Function introduction of main components of the automatic transmission;
2. Demonstration of the work principle and process of the automatic transmission;
3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;
4. Fault setting and troubleshooting
5. Maintenance and use of transmission
Suitable car models listed below
| P.N. | Car model |
| MATL-2002-001 | Volkswagen 01N |
| MATL-2002-002 | Toyota 30-40LE |
| MATL-2002-003 | Honda FIT CVT |
