Technical parameter
1. Dimensions: 1340*650*1800mm(LxWxH)
2. Power supply: AC220, 50Hz
Product description

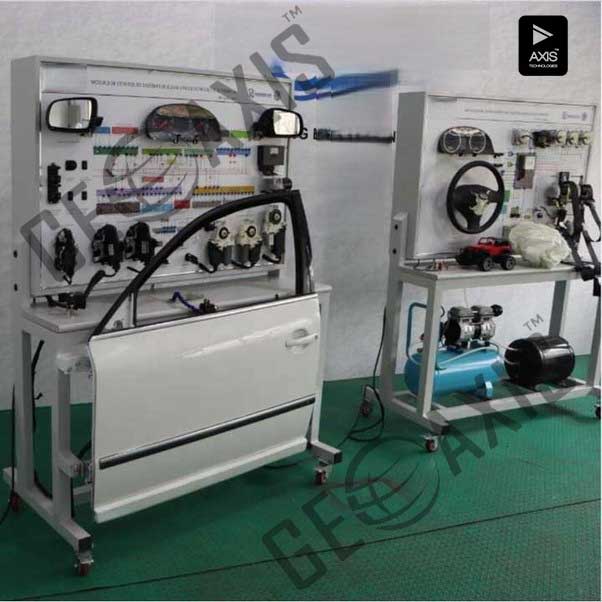

This training board adopts the original car electric window system, which can display the composition structure of the car electric window system and demonstrate its working process.
| Product composition | |||
| Power window switch | 1SET | Ignition switch | 1PCS |
| Power window motor | 1SET | Fault setting module(Manual switch type) | 1PCS |
| Window glass | 1SET | Mobile stand with test panel | 1PCS |
| Door assembly | 1PCS | ||
Main features
1. Adopting the original electric window system.
2. The electrical signals such as resistance, voltage, and current of electrical components can be measured.
3. Fault setting module: manual switch type (optional intelligent type)
Training courses
1. Function introduction of the main components of the power window system;
2. Demonstration of the working process of the electric window system;
3. Measurement of electrical signals of electrical components;
4. Fault setting and troubleshooting.
