Technical parameter
1. Dimensions: about 1260x650x1890mm
2. Power supply: AC220V, 50Hz
Product description

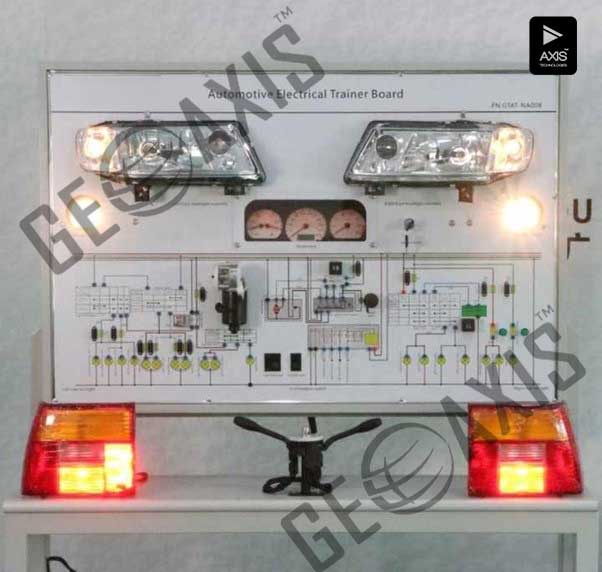

The training board adopts original Volkswagen Jetta auto lighting system. It can fully display the structure and components of the lighting system and can demonstrate its working process.

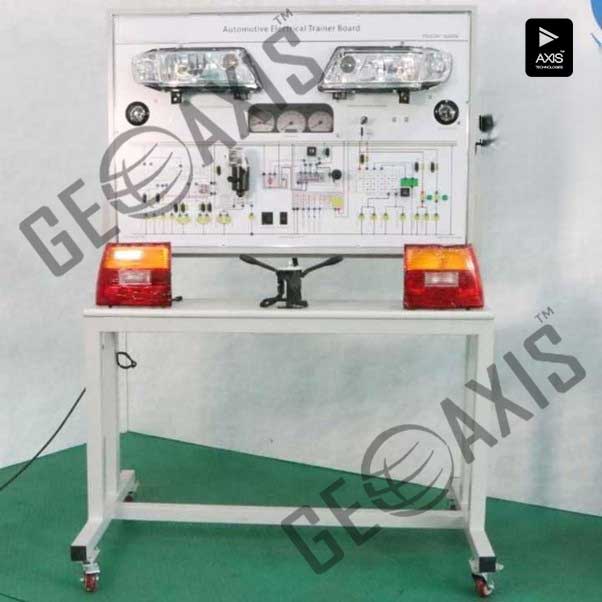

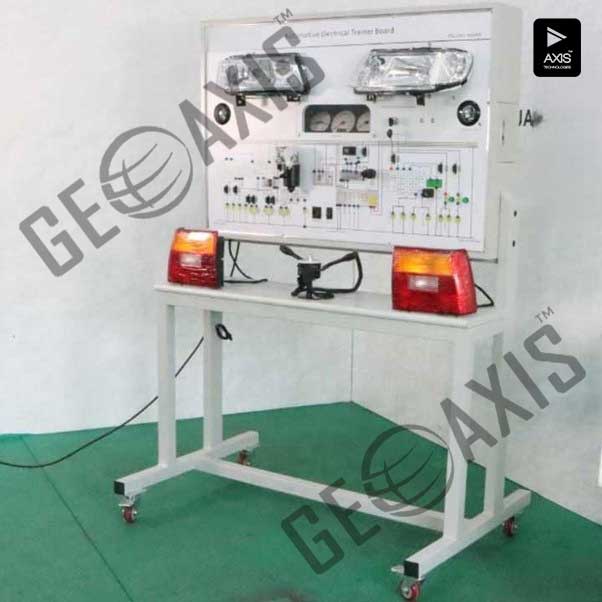

| Product composition | |||
| Headlights | 1PCS | Front corner lamp | 1PCS |
| Front/rear fog lights | 1PCS | Side turning lamp | 1PCS |
| Light switch assembly | 1PCS | Brake light switch | 1PCS |
| Tail lights | 1PCS | Dashboard | 1PCS |
| Dimmer switch assembly | 1PCS | Fault set module（Manual switch type） | 1PCS |
| Reversing light switch | 1PCS | Horn | 1PCS |
| License plate light | 1PCS | Mobile stand with test panel | 1PCS |
Main features

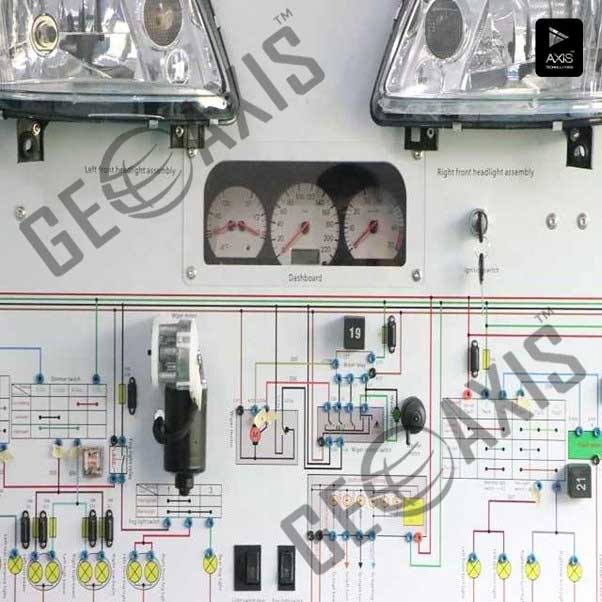

1. It adopts original automotive lighting system assembly and can display the structure of the lighting system.
2. It can demonstrate the working principle and process of the lighting system.
3. The test terminal is mounted on the test panel and can measure the electrical signals, such as resistance, voltage, current, etc.
4. Fault setting module: manual switch type(optional intelligent type)
Training courses
1. Function introduction of main components of auto lighting system;
2. Demonstration of the working principle and process of the lighting system;
3. Disassembly and replacement of light bulbs;
4. Detection of lighting system components;
5. Fault setting and troubleshooting.
