Electrical Training Panels Electrician Machine Training System Vocational Education Equipment for Electrical School Lab

Technical parameter

Power supply : Three phase, AC380V/50Hz
Dimension: 1500*660*1800mm
Weight: About 150kg

Product description

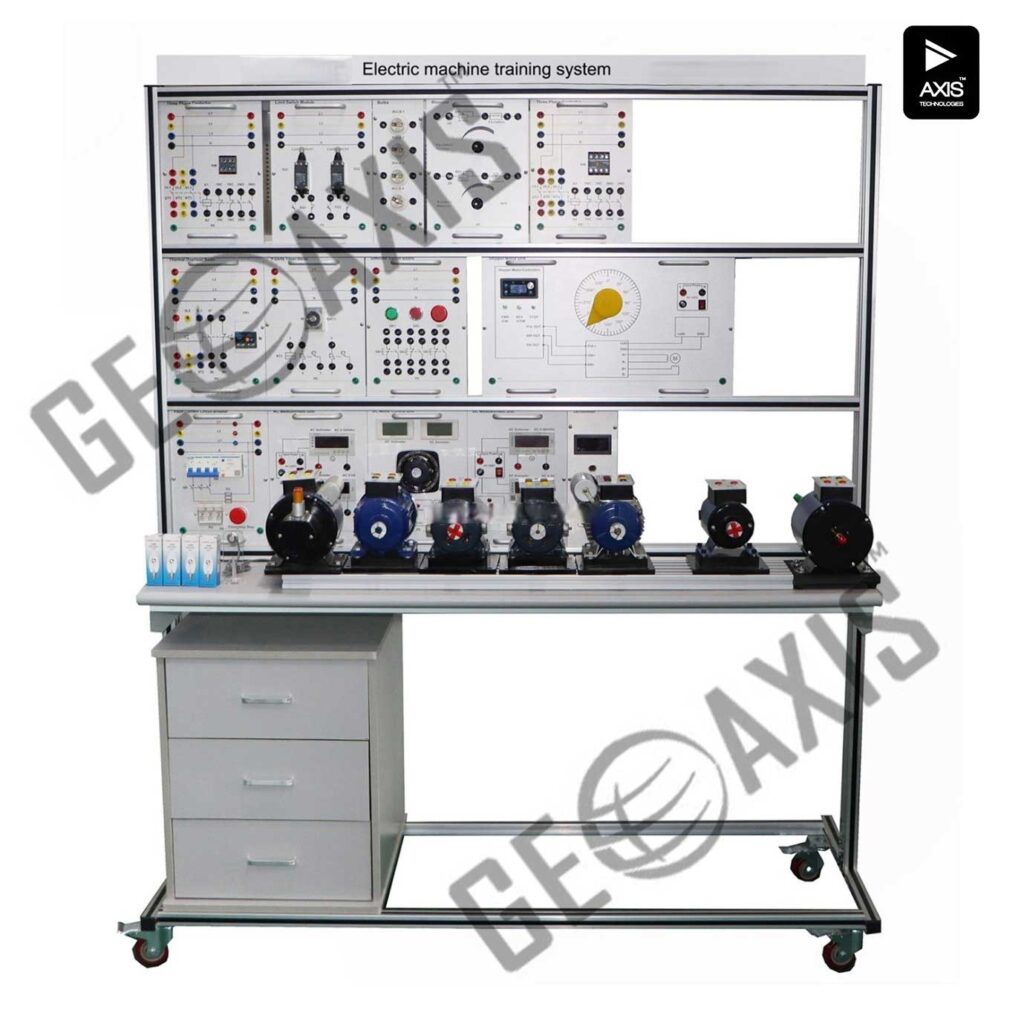

The Electrical training panels electrician machine training system vocational education equipment for electrical school lab is suitable for experiments and testing in skills development and training of electrical machine.

Product composition

No.	Name	Specs	Qty
1	DC Compound Motor	300 W/220VDC, Speed: 1500 rpm	1 set
2	Single Phase Synchronous Generator	300 W/220VAC, Speed: 1500 rpm	1 set
3	Permanent Split Capacitor Motor	250 W/220VAC, Speed: 1500 rpm	1 pcs
4	Three Phase Induction Motor	370W/3 phase 380VAC, Speed: 1500 rpm, Connection: Δ & Υ	1 set
5	Three Phase Synchronous Generator	300W/3 phase 380VAC,Speed: 1500 rpm, Connection: Υ	1 set
6	DC Separately Excited Motor	250W/220VDC, Speed: 1500 rpm	1 pcs
7	AC Measurement Module	Voltmeter: 0~500VAC, Ammeter: 0~2A,	1 set
8	DC Measurement Module	Voltmeter: 0~500VDC, Ammeter: 0~2A, Output: 220~250VDC	1 set
9	Indication Bulbs Module	Input : AC220V, 50Hz; single-phase, 4 incandescent lamp	1 pcs
10	Thermal Overload Relay Module	Rated Voltage : 220VAC, Rated Current : 1.0 A- 22 A	1 set
11	Limit Switch Module	Rated Voltage : 220VAC, 2-off limit switch	1 set
12	Simulate Switch Board	Rated voltage : 220VAC, 2 push button	1 pcs
13	Fault Current Circuit Breaker	3-off protection fuse; 2 A , Pilot lamps L1 , L2 & L3, Fault current circuit breaker 3-Poles Input: AC 380V/50Hz 3-Phase	1 pcs
14	Three Phase Contactor	Rated Voltage : 380VAC, Rated Current : 10 A Max. Coil Voltage: 220VAC	1 pcs
15	Rheostat	2 Protection Fuse; 2A, Excitation Resistor: 0~1kΩ, Armature Resistor: 0~100Ω	1 pcs
16	Y-Delta Timer Relay	Coil Voltage: 220VAC, Contact: Normally open (N.O.) & Normally closed (N.C.) Time : 0~60 seconds	1 pcs
17	DC Motor Control Unit	Output: 0~240VDC, Fixed 250VDC, Input: AC 220V, 50Hz single-phase	1 pcs
18	Tachometer	RPM Range: 0~9999rpm, Input: AC 220V	1 pcs
19	Tacho-Generator Module	Speed: 1500 rpm, Output: Max. 20 VDC	1 pcs
20	Stepper Motor Unit	Frequency: 5Hz,50Hz,100Hz,500Hz,1kHz, 5kHz Counter reset function, Direction: CW or CCW	1 pcs
21	Rotate Speed Sensor Module	Used with DC motor control unit / Tachometer	1 pcs
22	Connecting cable	For connecting junction point 4 mm	1 set

Training courses

1.Startup Control (Three-Phase Asynchronous Motor Jog Control Circuit)
2.Self-locking control (three-phase asynchronous motor self-locking control circuit)
3.Operating principle of switch interconnection forward and reverse control circuit
4.Appliance Voltage and Current Measurements
5.Stepper Motor Drive
6.DC Motor Speed Regulation and Speed Measurement
7.Three-phase alternator drive
8. Single-phase alternator drive
9.DC generator drive
10.Use of timer relay
11.First Connection of Contactors (KM)
12.Second Connection of Contactors (KM)
13.Third Connection of Contactors (KM)
14.Fourth Connection of Contactors (KM)
15. Contactor interconnection forward and reverse control circuit (1)
16. Contactor Interconnection Forward and Reverse Control Circuit (2)
17.Travel Switch Automatic Stop Control
18.Star-to-delta connection

item	value
Place of Origin	INDIA
Brand Name	METLOR
Model Number	MATL-1020
Item name	Electric Machine Training System
Keywords	educational equipment
Function	Training
Material	Metal
Certificate	ISO9001
Category	Electrical Engineering Trainer
Power supply	Three phase, AC380V/50Hz
Dimension	1500*660*1800mm
Weight	About 150kg
Warranty	12 Months
